Detection of ADS-B, Mode S, Mode A/C signals on 1090 MHz frequency
Detection of UAT signal on 978 MHz frequency
Measure of local atmospheric pressure, to compensate pressure altitude
Plug-and-play
Communication and power via Power Over Ethernet (PoE)
Rugged Metallic box for mounting in exterior (IP66)
Cavity filter for proper insulation of 1090 MHz frequency
Amplifier and filter for proper insulation and amplification of 978 MHz frequency
Surge protection
Provided with antennas
Integration within INVOLI.live and INVOLI API and STREAM

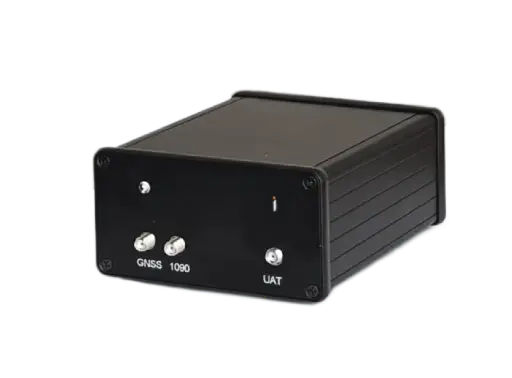

UAT (978 MHz)
Region: United States
Antenna: 978 MHz, omnidirectional, 5.5dBi, 66cm, fiberglass
Region: Depending on UAT installation on the aircraft
Precision: Depends on GNSS precision of the aircraft transmitter
Swiss Made
CE / FCC certifications

Frequency band: North America: B2, B4, B5, B12
GPS Chip: accuracy 5m horizontally, 15m- vertically
Battery life: 900mAh/3.7V Lithium polymer battery: 3h30 with position every 1 sec
Refresh time: down to 1s
Latency: <2s
IP67 waterproof
Real-Time GPS Tracking
SIM card: Nano type
Dimensions: 61*45*19mm
Weight: 47g
Charge: USB-C Dock Station
Certification: CE / FCC
LED Light: 2 LED lights indicating GNSS/GSM/Power status
Compliant with ASTM F3411-22a standard.
FAA Final Rule for Remote ID of UAV

500MB worldwide data plan (valid for 5 years)

WiFi Broadcast Remote ID enabled
Standalone 4G LTE/GPS tracking device for Network Remote ID (SIM card NOT included)
Frequency band: Europe: B1, B3, B7 and B8,
GPS Chip: accuracy 5m horizontally, 15m- vertically
Battery life: 900mAh/3.7V Lithium polymer battery: 3h30 with position every 1 sec
Refresh time: down to 1s
Latency: <2s
IP67 waterproof
Real-Time GPS Tracking
SIM card: Nano type
Dimensions: 61*45*19mm
Weight: 47g
Charge: USB-C Dock Station
Certification: CE / FCC
LED Light: 2 LED lights indicating GNSS/GSM/Power status

Compliant with ASTM and ASD-STAN standards:
- ASTM Remote Identification F3411-22a
- ASD-STAN 4709-002 standard
- EC Delegated Regulation ( EU)2019/945
- EU U-Space Regulation (EU)2021/664

500MB worldwide data plan (valid for 5 years)

Detection of ADS-B, Mode S, Mode A/C signals on 1090 MHz frequency
Detection of ASTM Broadcast Remote ID based on ASTM International F3411-19 standard
Measure of local atmospheric pressure, to compensate pressure altitude
Plug-and-play
Communication and power via Power Over Ethernet (PoE)
Rugged Metallic box for mounting in exterior (IP66)
Cavity filter for proper insulation of 1090 MHz frequency
Surge protection
Provided with antennas
Integration within INVOLI.live and INVOLI API and STREAM
Swiss Made
CE / FCC certifications
Remote ID (2.4 GHz)
Region: Worldwide
Antenna: 2.4 GHz, omnidirectional, 0dBi, 10cm, plastic
Range: Up to 2 Mi (4km) depending on the drone emitting power
Precision: Depending on the GNSS precision of the drone emitter

LEMAN Remote ID tracker

WiFi Broadcast Remote ID enabled
Standalone 4G LTE/GPS tracking device for Network Remote ID (SIM card not included)
Frequency band: North America: B2,B4, B5, B12
GPS Chip: accuracy 5m horizontally, 15m- vertically
Battery life: 900mAh/3.7V Lithium polymer battery: 3h30 with position every 1 sec
Refresh time: down to 1s
Latency: <2s
IP67 waterproof
Real-Time GPS Tracking
SIM card: Nano type
Dimensions: 61*45*19mm
Weight: 47g
Charge: USB-C Dock Station
Certification: CE / FCC
LED Light: 2 LED lights indicating GNSS/GSM/Power status
Compliant with ASTM F3411-22a

LEMAN Remote ID tracker


WiFi Broadcast Remote ID enabled
Standalone 4G LTE/GPS tracking device for Network Remote ID (SIM card NOT included)
Frequency band: Europe: B1, B3, B7 and B8,
GPS Chip: accuracy 5m horizontally, 15m- vertically
Battery life: 900mAh/3.7V Lithium polymer battery: 3h30 with position every 1 sec
Refresh time: down to 1s
Latency: <2s
IP67 waterproof
Real-Time GPS Tracking
SIM card: Nano type
Dimensions: 61*45*19mm
Weight: 47g
Charge: USB-C Dock Station
Certification: CE / FCC
LED Light: 2 LED lights indicating GNSS/GSM/Power status

Compliant with ASTM and ASD-STAN standards:
- ASTM Remote Identification F3411-22a
- ASD-STAN 4709-002 standard
- EC Delegated Regulation ( EU)2019/945
- EU U-Space Regulation (EU)2021/664

Detection of ADS-B, Mode S, Mode A/C signals on 1090 MHz frequency
Detection of FLARM signal on 868 MHz frequency (includes an unlimited FLARM license)
Measure of local atmospheric pressure, to compensate pressure altitude
Plug-and-play
Communication and power via Power Over Ethernet (PoE)
Rugged Metallic box for mounting in exterior (IP66)
Cavity filter for proper insulation of 1090 MHz frequency
Amplifier and filter for proper insulation and amplification of 868 MHz frequency
Surge protection
Provided with antennas
Integration within INVOLI.live

FLARM (868 MHz)
Region: Europe
Antenna: 868 MHz, omnidirectional, 9dBi, 63cm, fiberglass
Region: Up to 30 Mi (60 km) depending on FLARM installation on the aircraft
Precision: ±100 ft (30 m) for horizontal and vertical positioning
Swiss Made
CE / FCC certifications

Detection of ADS-B, Mode S, Mode A/C signals on 1090 MHz frequency
Plug-and-play
Communication and power via Power Over Ethernet (PoE)
Rugged Metallic box for mounting in exterior (IP66)
Cavity filter for proper insulation of 1090 MHz frequencyMeasure of local Atmospheric pressure, to compensate pressure altitude
Surge protection
Pressure sensor
Provided with antennas
Integration within INVOLI.live and INVOLI.API and STREAM
Swiss Made
CE / FCC certifications

INVOLI.LIVE - Free plan

Includes the following features:
* Data processing of receivers and/or trackers
* LEMAN RID tracker Management tools
* G-1090 receivers Management tools
* Live visualisation of Air Traffic (web)
* Live tracking of Drones (web)
* Alerting zone configuration
* Surveillance coverage map

Support via knowledge based
