G-1090 in INVOLI.live
Basics
The INVOLI.live web interface allows users to visualize and manage the G-1090 receivers. To begin, click on the icon:

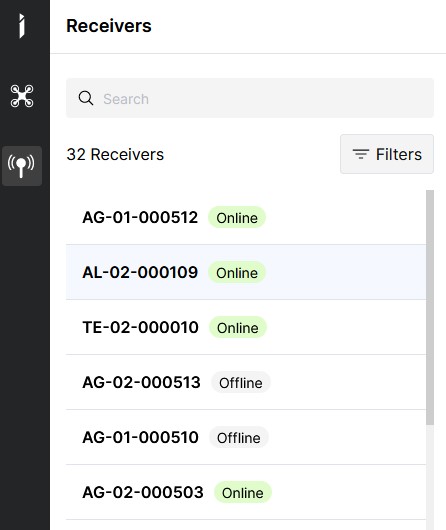

and another menu will open:
|
|
The interface displayed above enables users to search for receivers, view detailed information, and apply various filters based on their status (Online/Offline), operational state (Production, Test, Not Applicable), or the version of firmware deployed.
To locate a receiver on the map, simply search for it and select it from the list.
The map illustrates the geographical positions of the receivers along with their current status:
| Active receiver |
| Inactive receiver |
| Selected receiver |

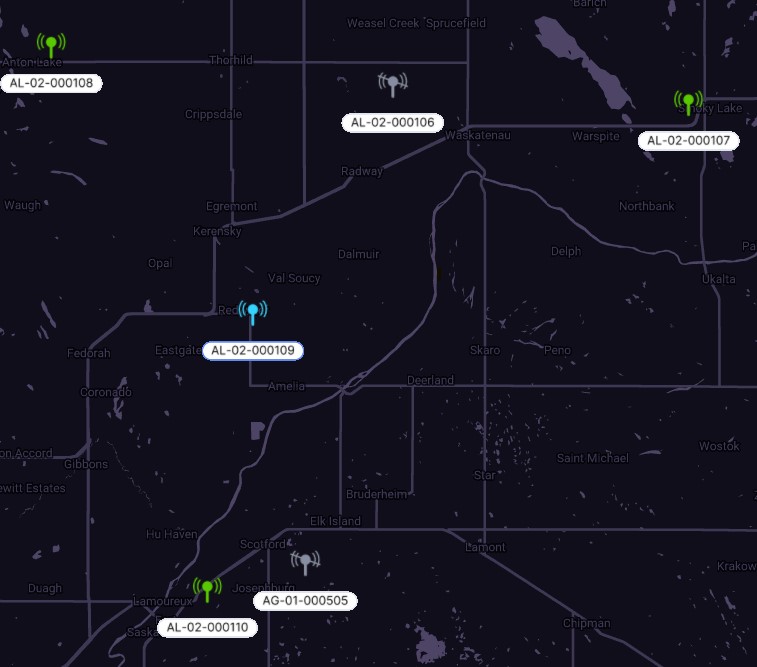

An illustration of the INVOLI.live map displaying active, selected, and inactive receivers:
Clicking the button

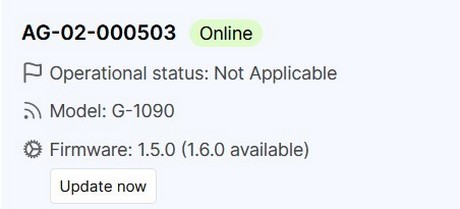

located next to the receiver's name will display the details view:

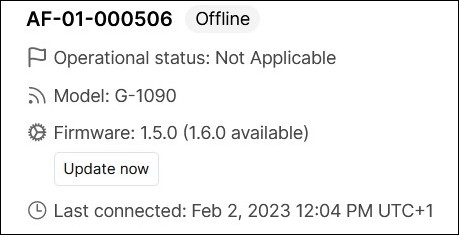

The information for the offline receiver includes the most recent connection time.
To install the latest firmware version, just click on "Update now". For the complete procedure, please move on to the next page.
