Air traffic icon types
The following air traffic objects can be found in INVOLI.live:
| Large plane, aircraft with jet or turboprop engine(s) (this is the default icon for aircraft not described in this table) |
| Light plane up to 7000kg, glider or with motor |
| Helicopter, gyrocopter, rotorcraft |
| Ground service or ground emergency vehicle |
 | Ultralight: hang-glider, paraglider |
 | Parachutist, skydiver |
 | Balloon (hot air, gas, weather, static), airship, blimp, zeppelin |
 | Ground obstruction, static obstacle |
 | Drone, unmanned aircraft |
The standard convention is that objects in the air are colored yellow, while those on the ground are colored grey.
For each object listed, fundamental details such as identity, height, and horizontal velocity are shown:

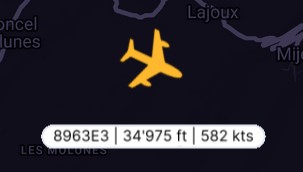

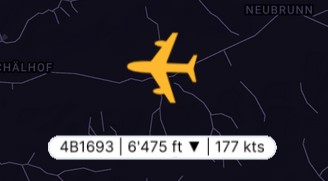

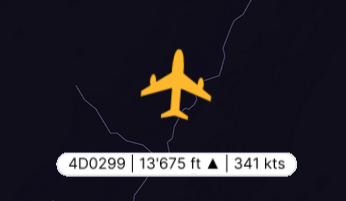

The images above present the large aircraft, detailing their ICAO code, altitude in feet, vertical speed change direction, and ground speed. The direction of vertical speed change will be shown if the change exceeds 200 feet per minute.
Similarly, for other aerial objects, their identification code (ICAO, squawk, or national registration code), altitude, and horizontal speed are included.
The flight direction of each air object is represented by its orientation or by an arrow rotating around the icon.
The LEMAN RemoteID tracker along with its flight parameters is displayed as follows:
