Attaching tracker to drone
Attaching the tracker to the drone
Two pieces of hook-and-loop fastener are included with the LEMAN RemoteID drone tracker. The drone operator may use this or another compatible, similar solution to attach the tracker to the drone.
| Warning! INVOLI declines any responsibility in case the fastener system provided to attach the tracker on a drone fails, either partially or totally, during a flight or otherwise. The fixing of the drone tracker over the drone has to be checked before every flight, as a normal activity of pre-flight check. |
To properly install the hook-and-loop fastener, follow the steps below:
- Clean with an alcohol-based solution the surfaces before sticking the fastener pieces

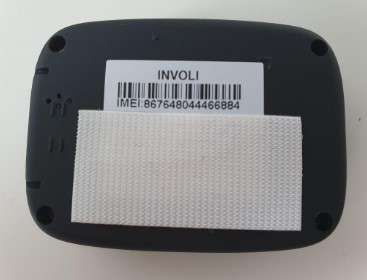

- The hook part (roughest side) must be stuck on the tracker. Do not cover the IMEI number and the tracker’s left-side air holes.

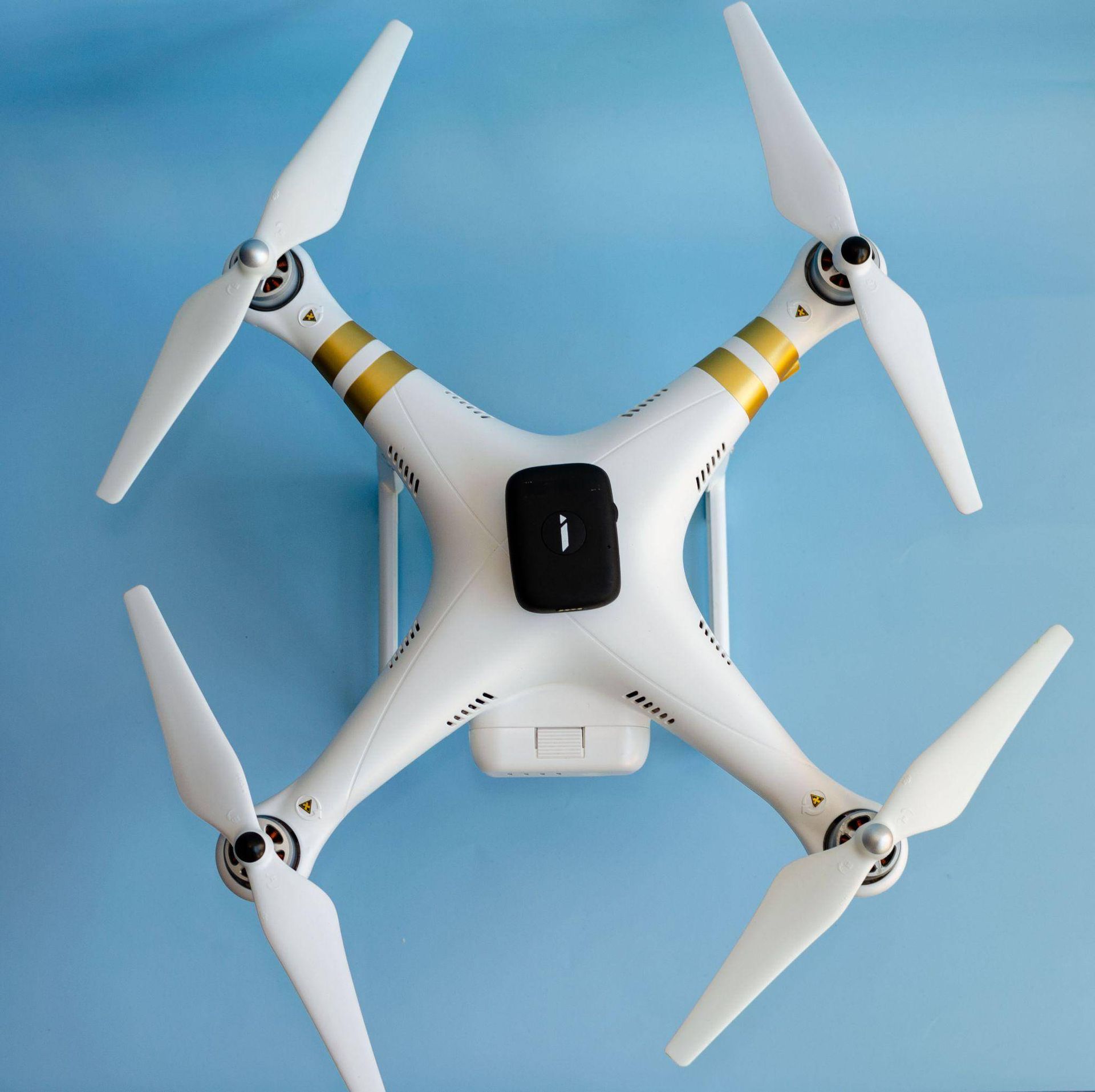

- The loop part (smoothest side) must be stuck on the drone top to avoid gravity counterforce. Pay attention to preserving the center of gravity of the drone.
- After attaching the drone tracker, perform some tests to be sure that the presence of the tracker does not lower the drone performance (e.g. communication or GNSS coverage).
