LEMAN RemoteID in INVOLI.live
The INVOLI.live web interface is used to visualize and manage the LEMAN RemoteID trackers. After selecting the icon:

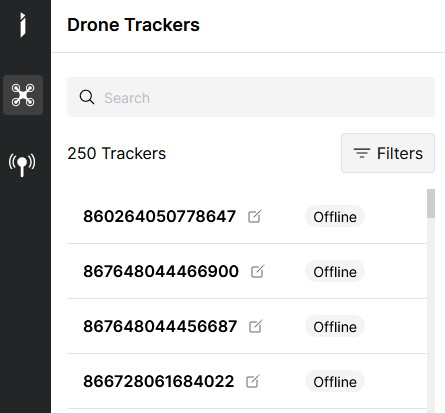

the other menu will open. The interface shown below allows one to search the trackers by identification, model, and status:
|
|

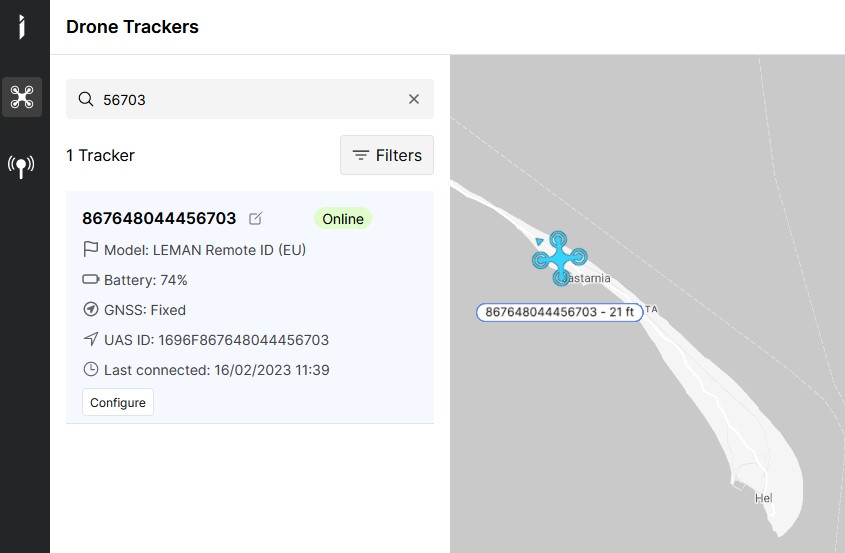

To find a LEMAN RamoteID on the map, simply select it in the list and click. The map will be adjusted to the geographical location of the tracker. Additional information concerning the tracker is displayed in the panel.
The icon of the drone is complemented by an arrow indicating the flight direction. Underneath the icon, the ID, altitude, and horizontal speed are presented. In case the speed is 0, it is omitted.
Tracker configuration in INVOLI.live
It is possible to configure the following parameters in the INVOLI.live interface:
- Enable Wi-Fi broadcast
- Setup Operator ID
- Change position update period between 1 and 3 seconds

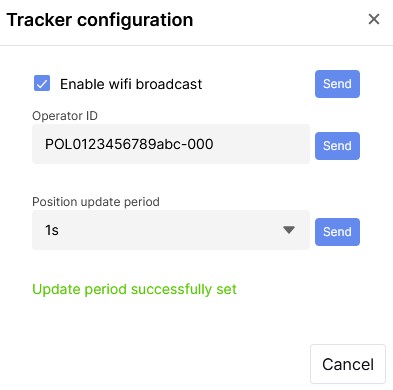

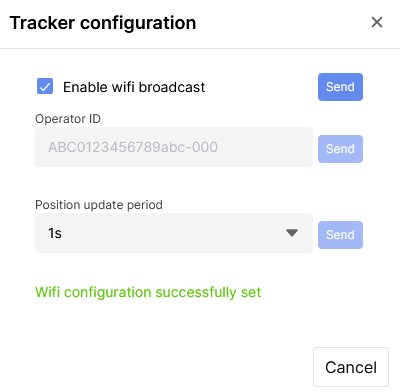

The picture below shows the configuration panel. After the configuration message is sent, the status message with confirmation or rejection should be presented in the window.
|
|
