What is LEMAN RemoteID?

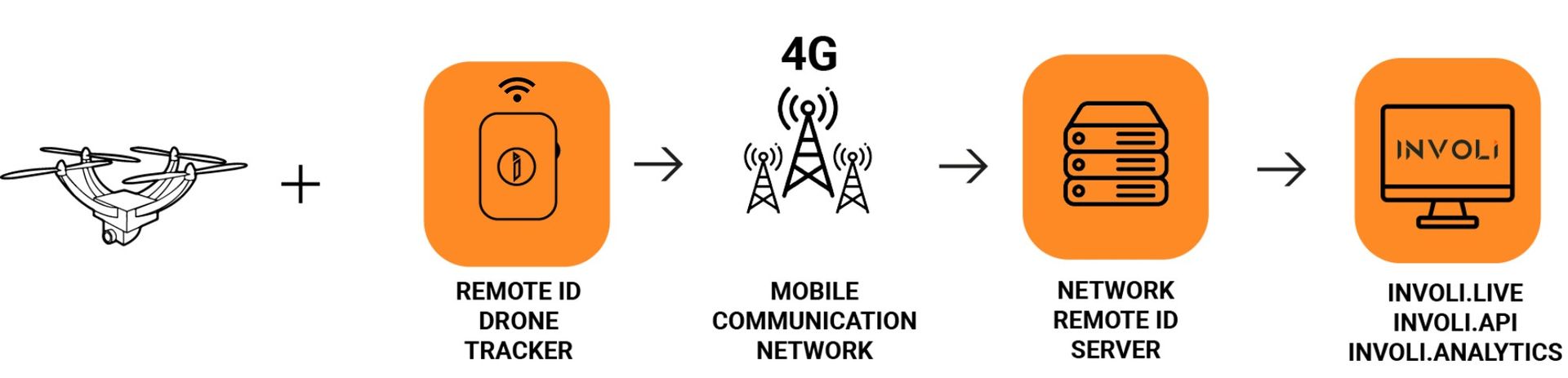

The LEMAN RemoteID is a fully independent drone tracker with its own GPS and battery. Once equipped with a SIM card and configured, it will start transmitting its position to the INVOLI Server. When attached to the drone, it will enable position monitoring on the INVOLI.live display platform. Alternatively, it is possible to integrate the data stream in third-party software - like a UTM or a drone ground control software - using the INVOLI API & Stream.
LEMAN is a lightweight (47 grams), independent 4G and Wi-Fi drone tracker, which complies with the Remote ID standard from ASTM, described in "F3411-22A-Standard Specification for Remote ID and Tracking". The Remote ID broadcast option allows the broadcasting pilot and tracker identification, takeoff and drone position, and other details specified in the standard around the area of UAV operation. The network option makes the tracker data available online via INVOLI.live platform, and visible to other authorized stakeholders for coordination and conflict resolution.

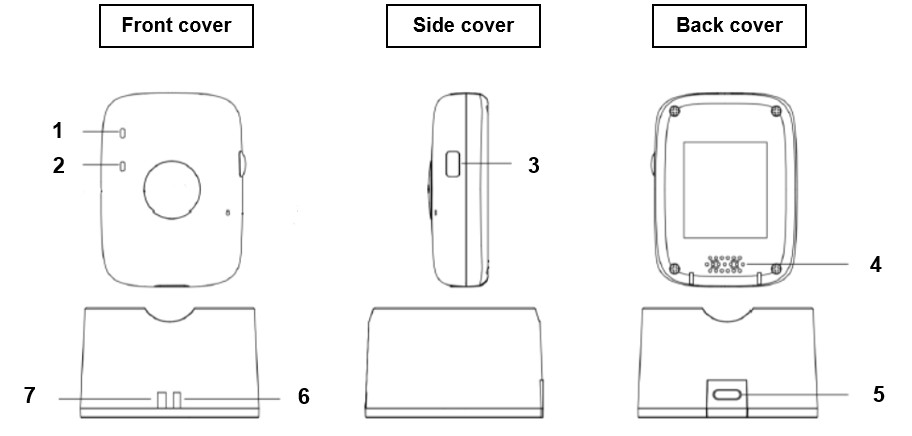

| Tracker: | |
| 1 | Red LED: power and cellular connectivity status |
| 2 | Blue LED: GPS status |
| 3 | Power Button: switch on/off |
| 4 | Speaker |
| Charging station: | |
| 5 | USB-C charging station port |
| 6 - 7 | Red LED: power indicator |
To turn the tracker on, press the Power button (3) for 2–3 seconds until the tracker beeps high three times and vibrates. The two LEDs (1 and 2) will light up and flash quickly during initialization. To turn it off, press the Power button (3) until it beeps low two times and vibrates. The LEDs status indicators are described in the next paragraph.
